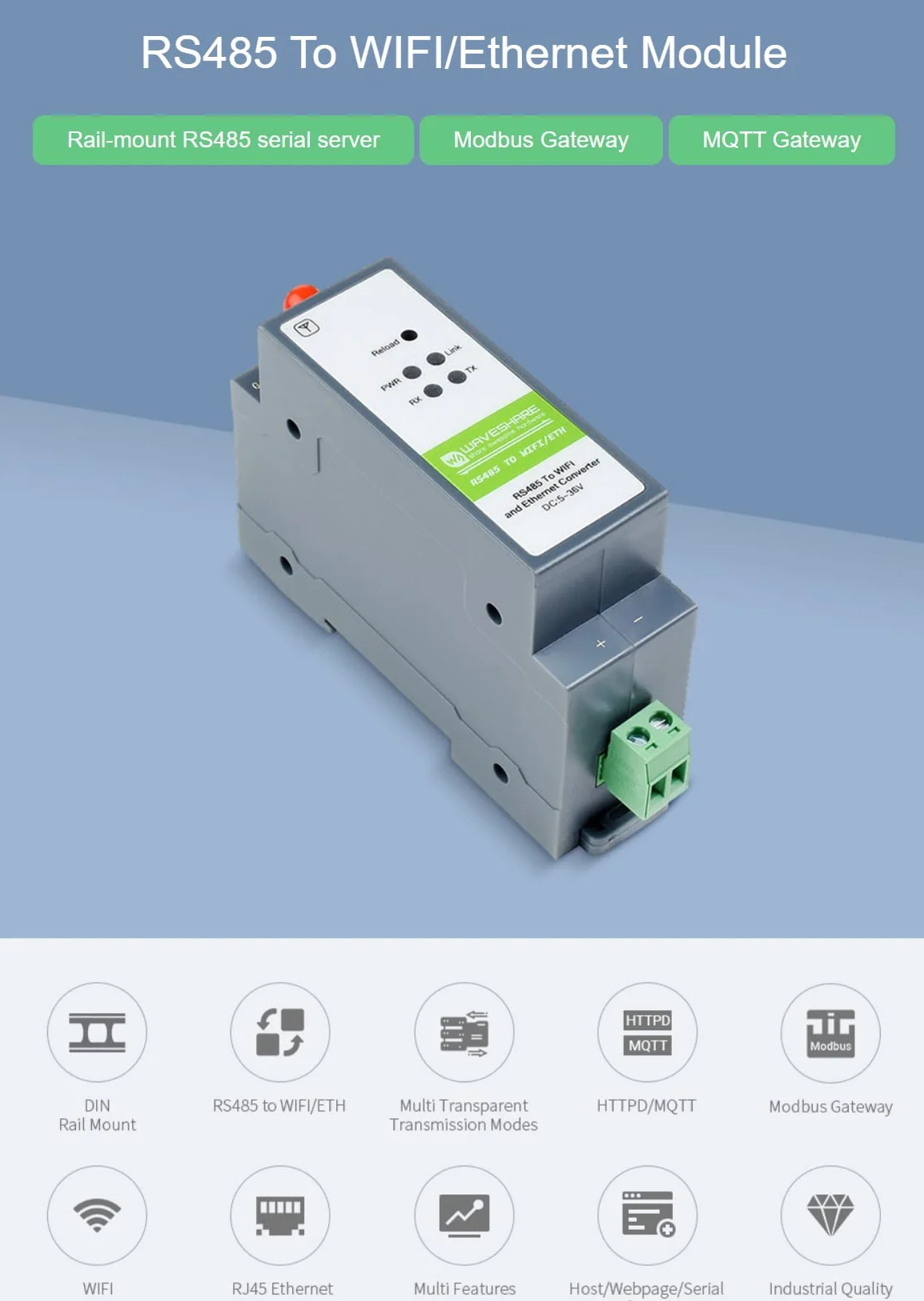

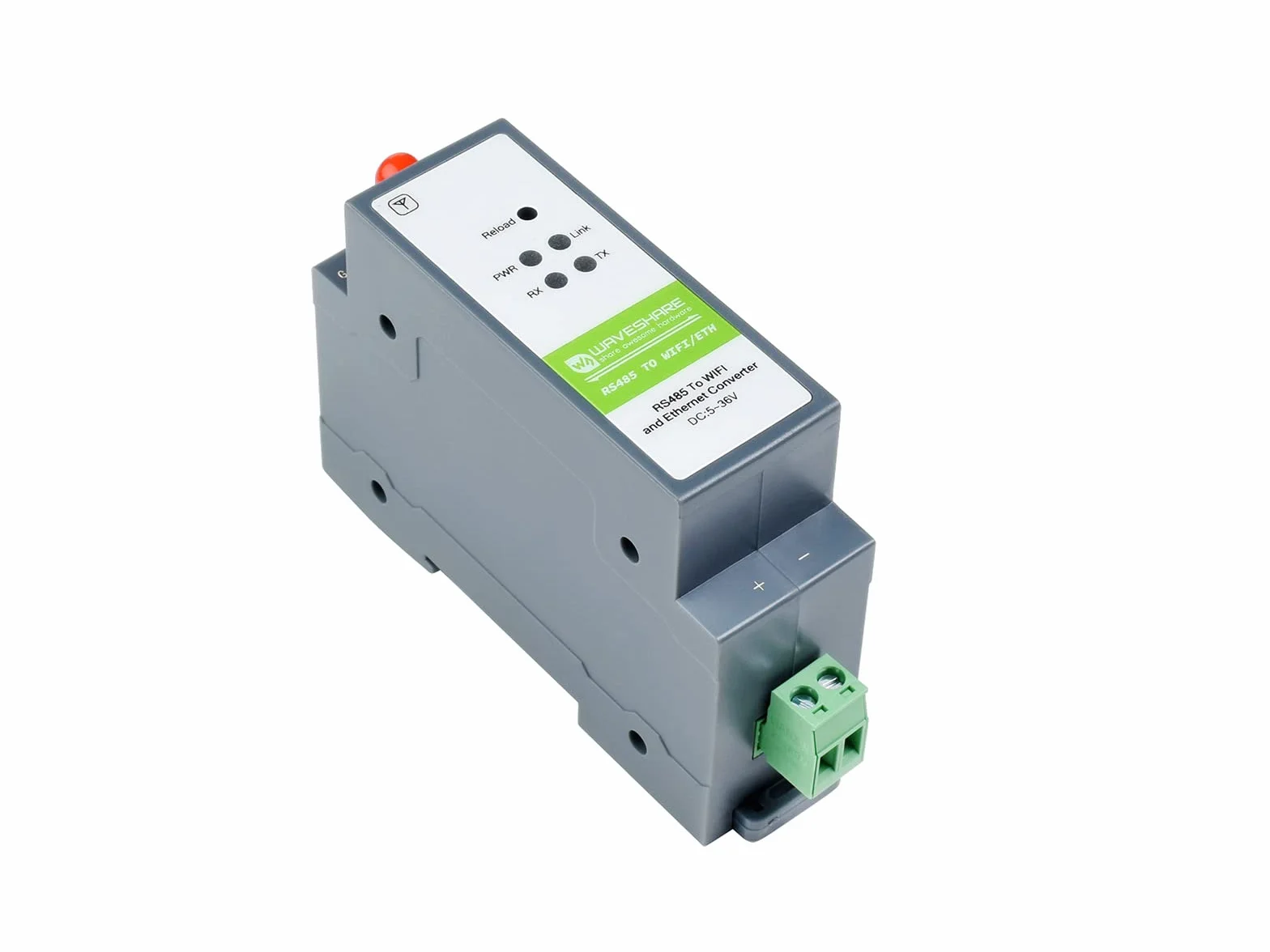

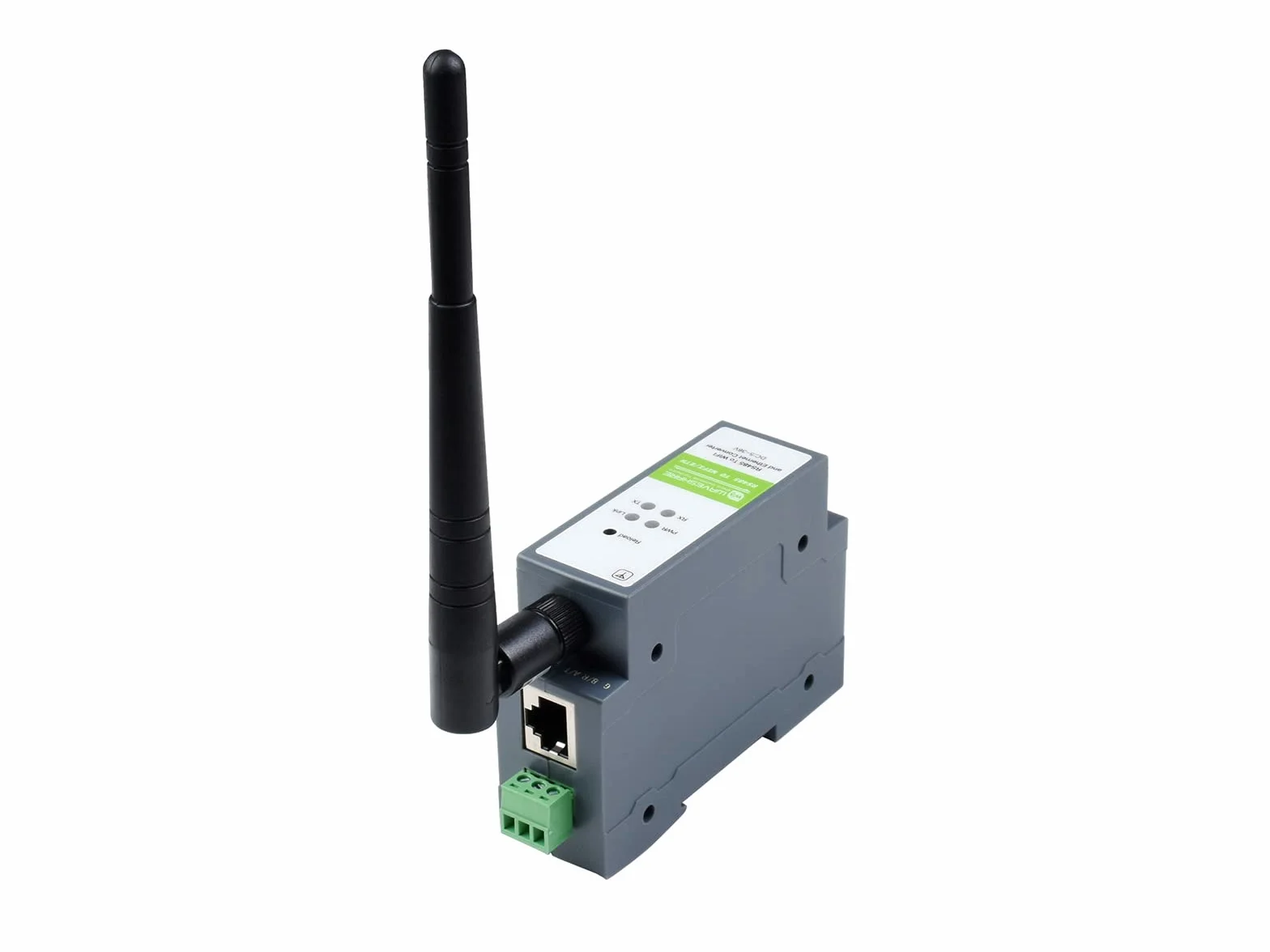

Módulo RS485 a WiFi Ethernet, Gateway Modbus MQTT, Servidor Serial Montaje en Riel, Puertos RS485/WiFi/Ethernet

Marca: Waveshare
Interfaz de hardware: Ethernet
Dispositivos compatibles: PC industrial, PLC, dispositivos de automatización
Protocolo de enlace de datos: Ethernet, WiFi (802.11b/g/n)
Velocidad de transferencia de datos: 100 Megabits por segundo
Número de paquetes: 1
Número de unidades: 1.0 Conteo
UPC: 755291679045
Número de productos: 1
Fabricante: Waveshare

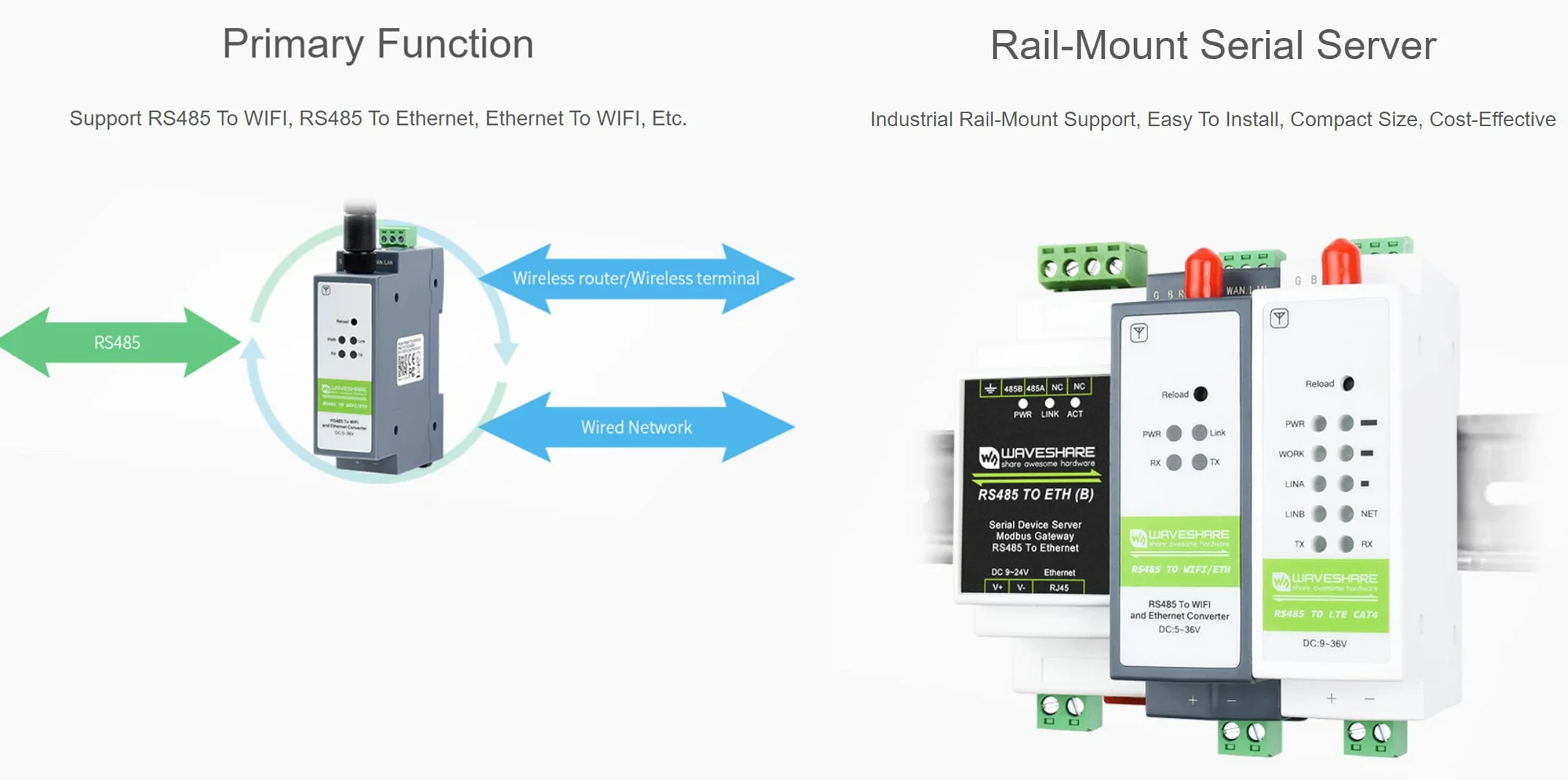

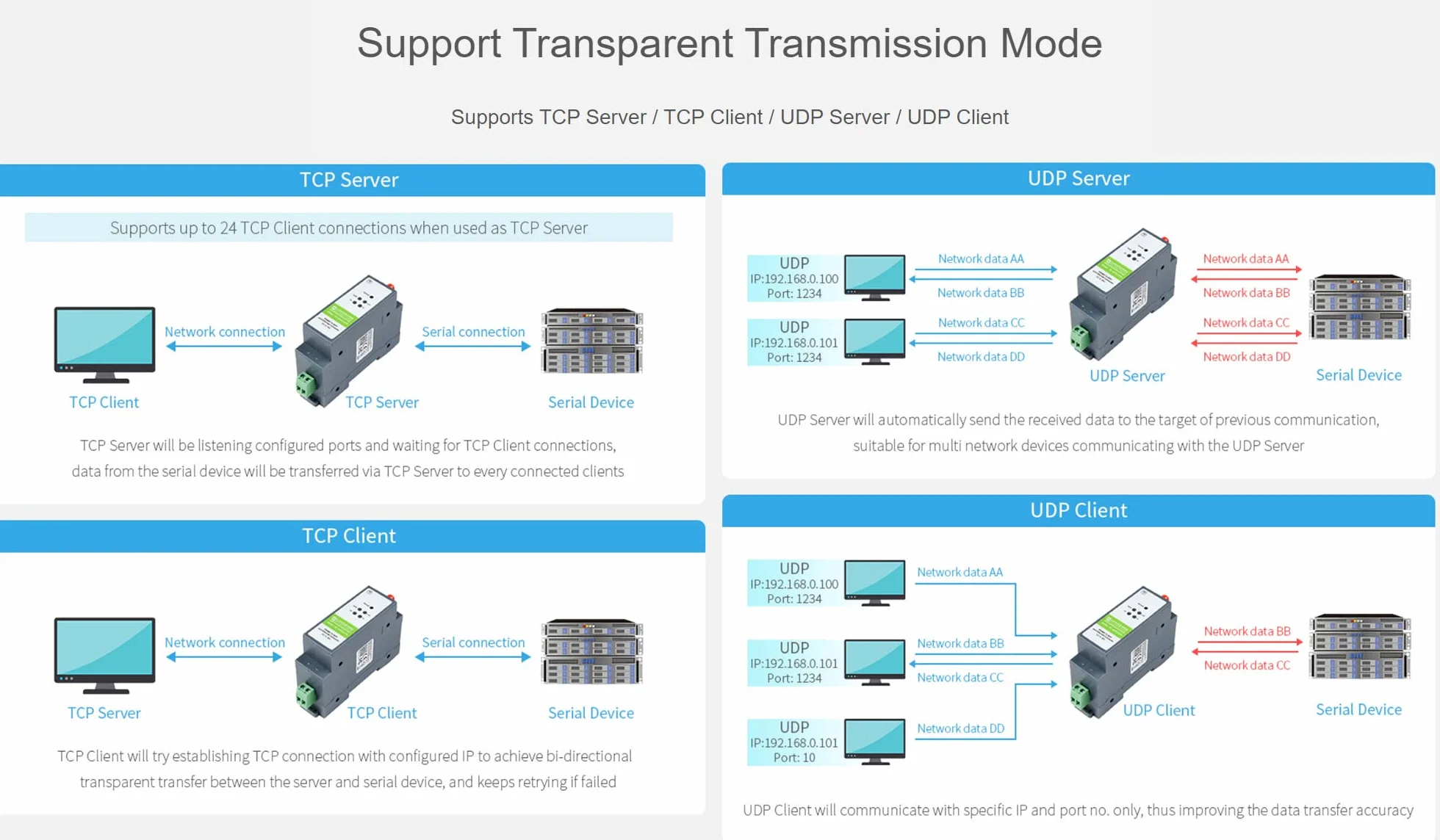

- RS485 to WIFI/Ethernet serial server supports RS485 to WIFI, RS485 to Ethernet, Ethernet to WIFI, etc. supports TCP Server / TCP Client / UDP Server / UDP Client

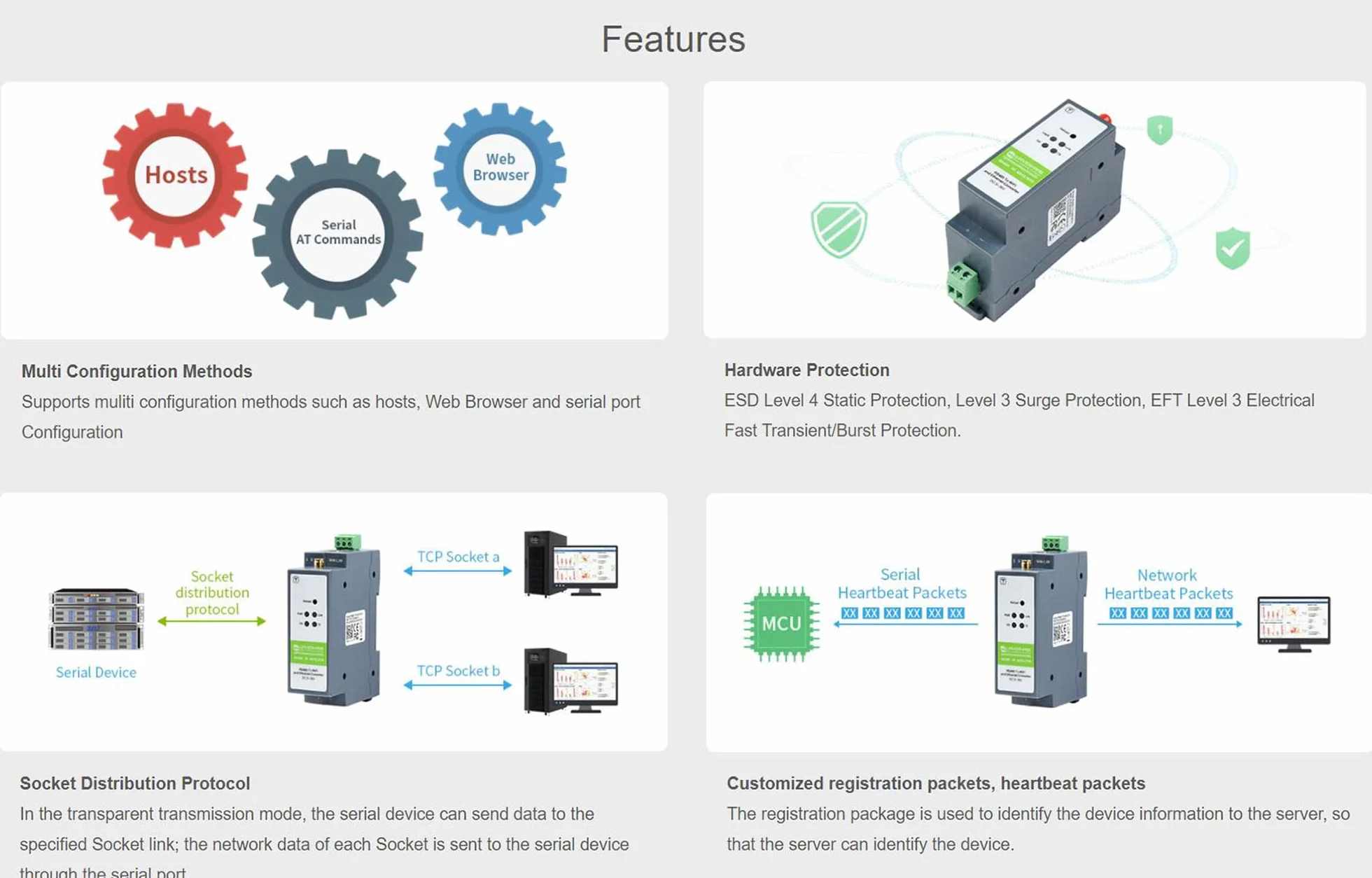

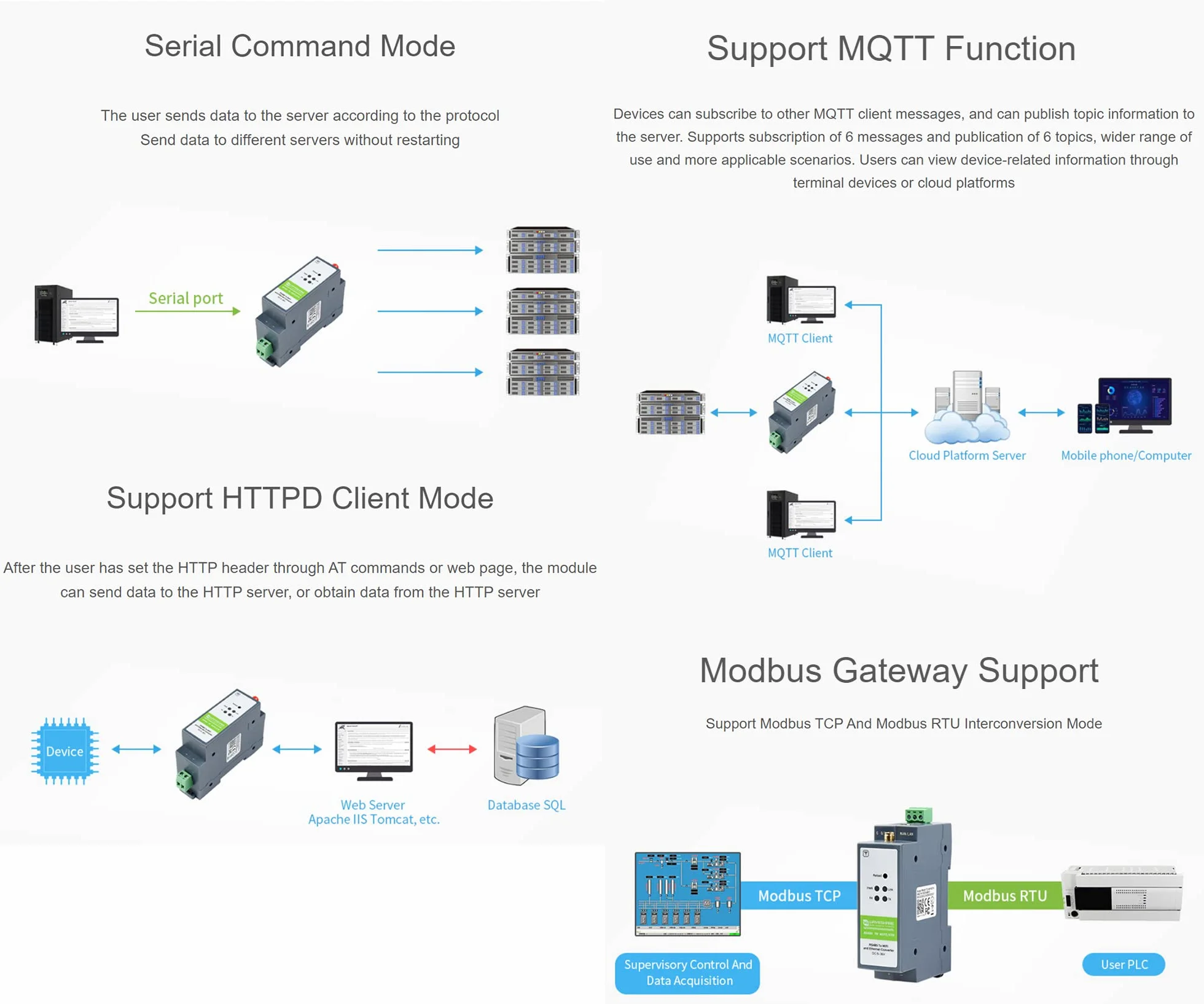

- Serial command mode, the user sends data to the server according to the protocol, send data to different servers without restarting
- Support HTTPD Client Mode, after the user has set the HTTP header through AT commands or web page, the module can send data to the HTTP server, or obtain data from the HTTP server
- Support MQTT function, support Modbus TCP and Modbus RTU interconversion mode
- Industrial rail-mount support, easy to install, compact size, cost-effective. Power supply is not included, it is recommended to use a 12V Industrial DIN-Rail Power Supply
