Freenove Breakout Board for Raspberry Pi 5, Terminal Block Shield Hat GPIO Status LED

Marca: Freenove
Nombre del modelo: FNK0080
Capacidad de almacenamiento de memoria: 1 TB
Modelo de CPU: Ninguno
Tecnología de conectividad: GPIO

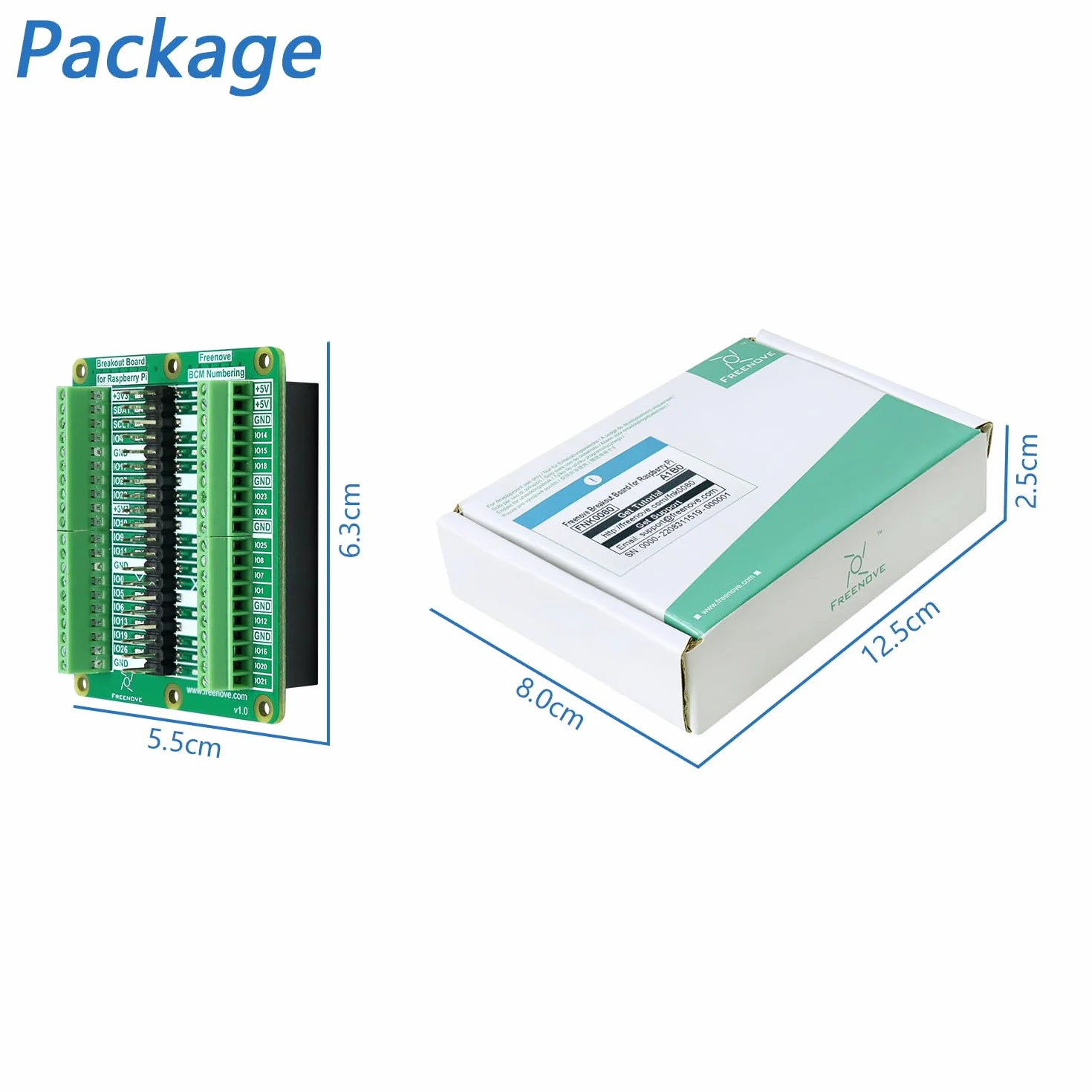

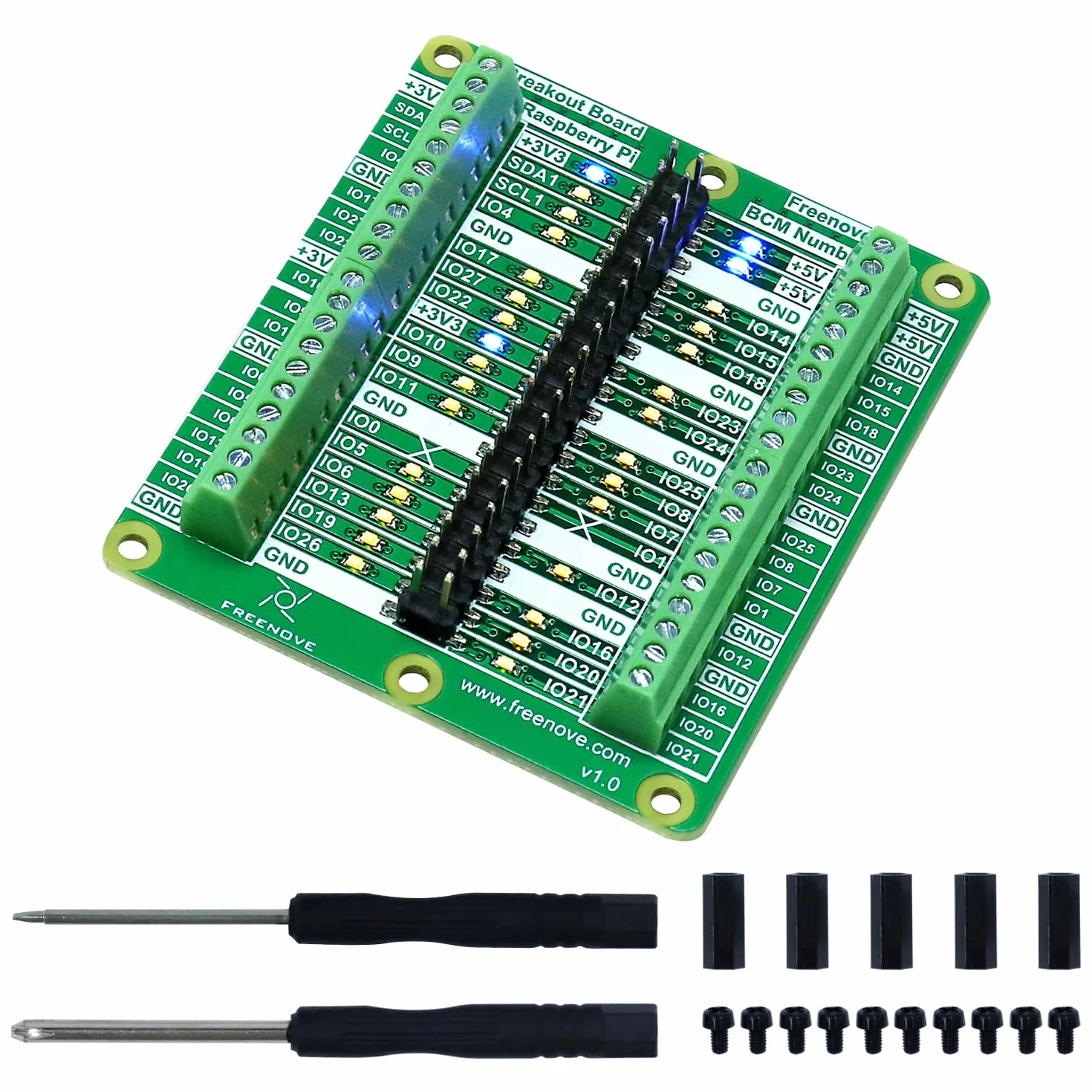

Componentes incluidos: 1 x Breakout Board, 10 x M2.5*12 Standoff, 5 x M2.5*4 Screw, 1 x Cross Screwdriver, 1 x Slotted ScrewdriverVer más
Sistema operativo: Raspberry Pi OS (or any other compatible operating system such as Ubuntu, RetroPie, etc.)
Fabricante de CPU: Broadcom
Estándar de comunicación inalámbrica: 802.11ax
Dispositivos compatibles: Raspberry Pi 5 / 4B / 3B+ / 3B / 3A+ / 2B / 1B+ / 1A+ / Zero W / Zero

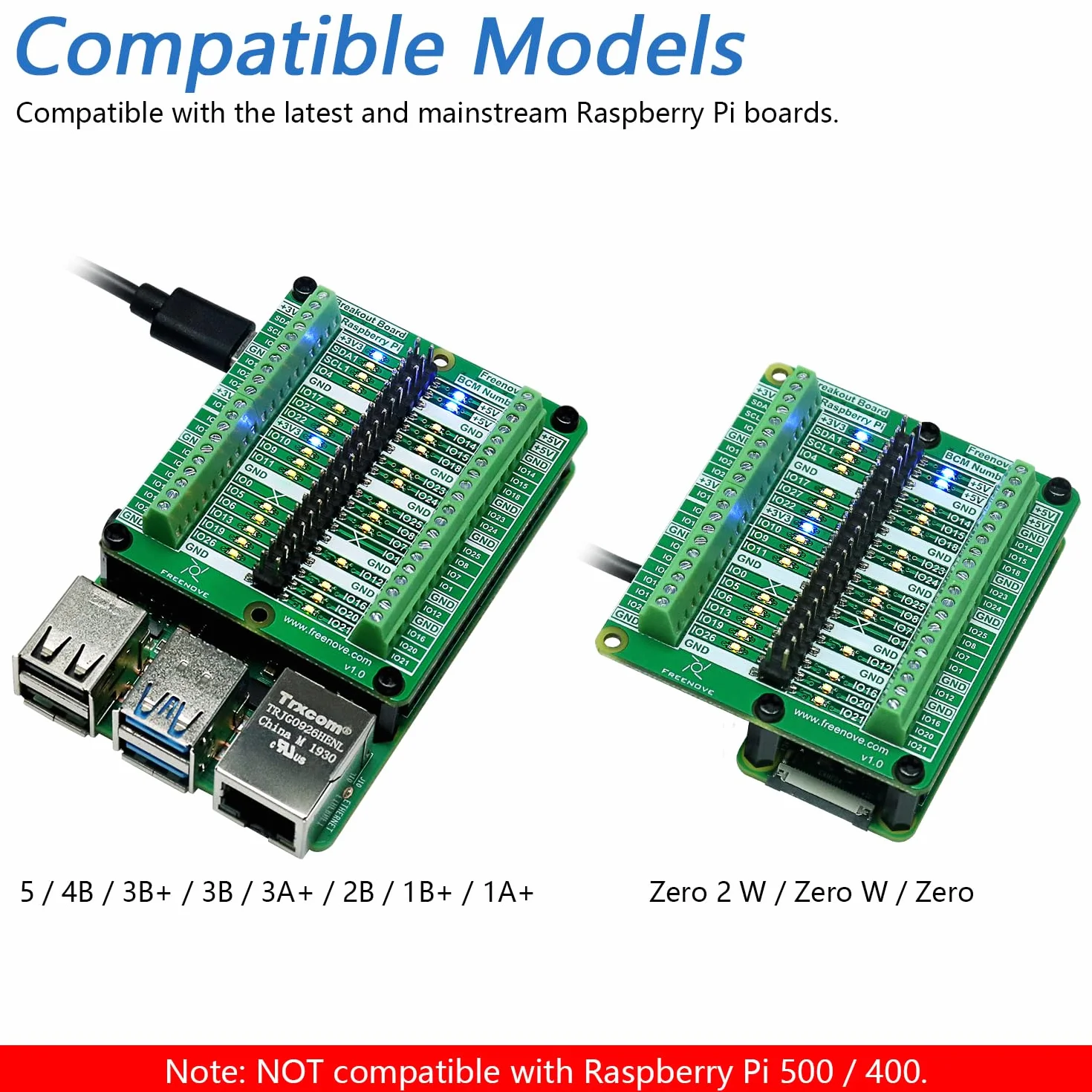

- Compatible Models: Raspberry Pi 5 / 4B / 3B+ / 3B / 3A+ / 2B / 1B+ / 1A+ / Zero 2 W / Zero W / Zero (Note: NOT compatible with 500 / 400)

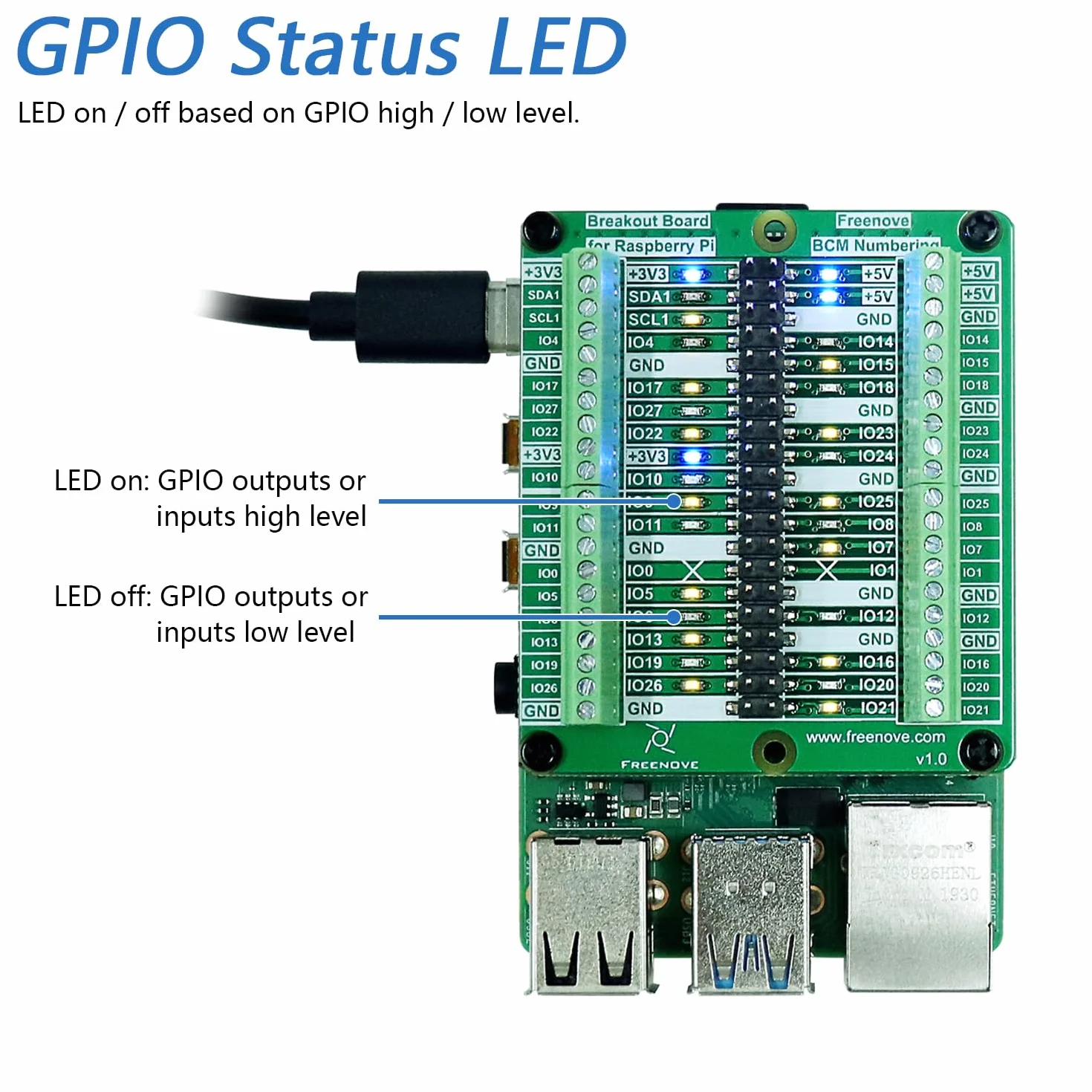

- GPIO Status LED: LED on if GPIO outputs / inputs high level, LED off if GPIO outputs / inputs low level

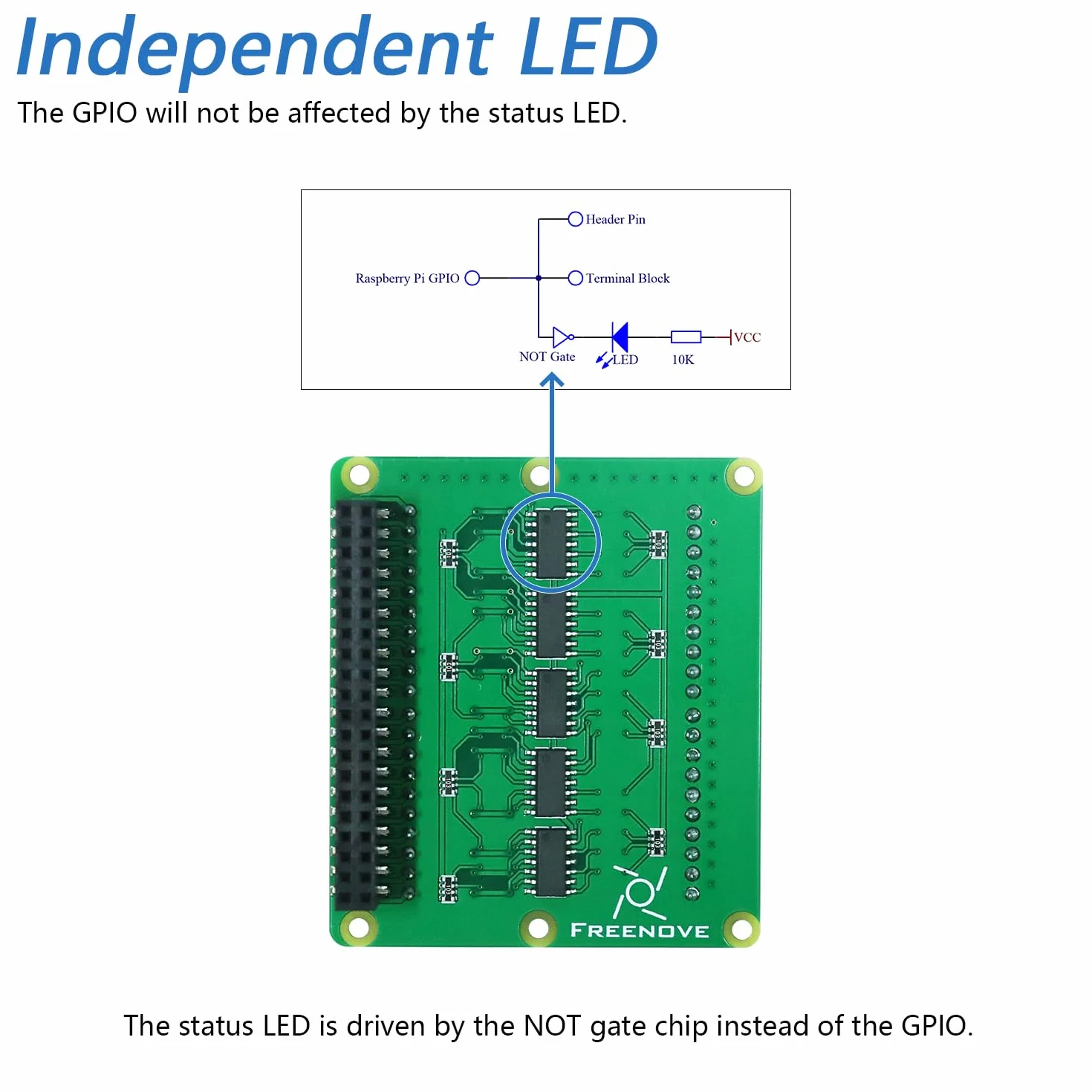

- Independent LED: The status LED is driven by the chip instead of the GPIO so the GPIO will not be affected

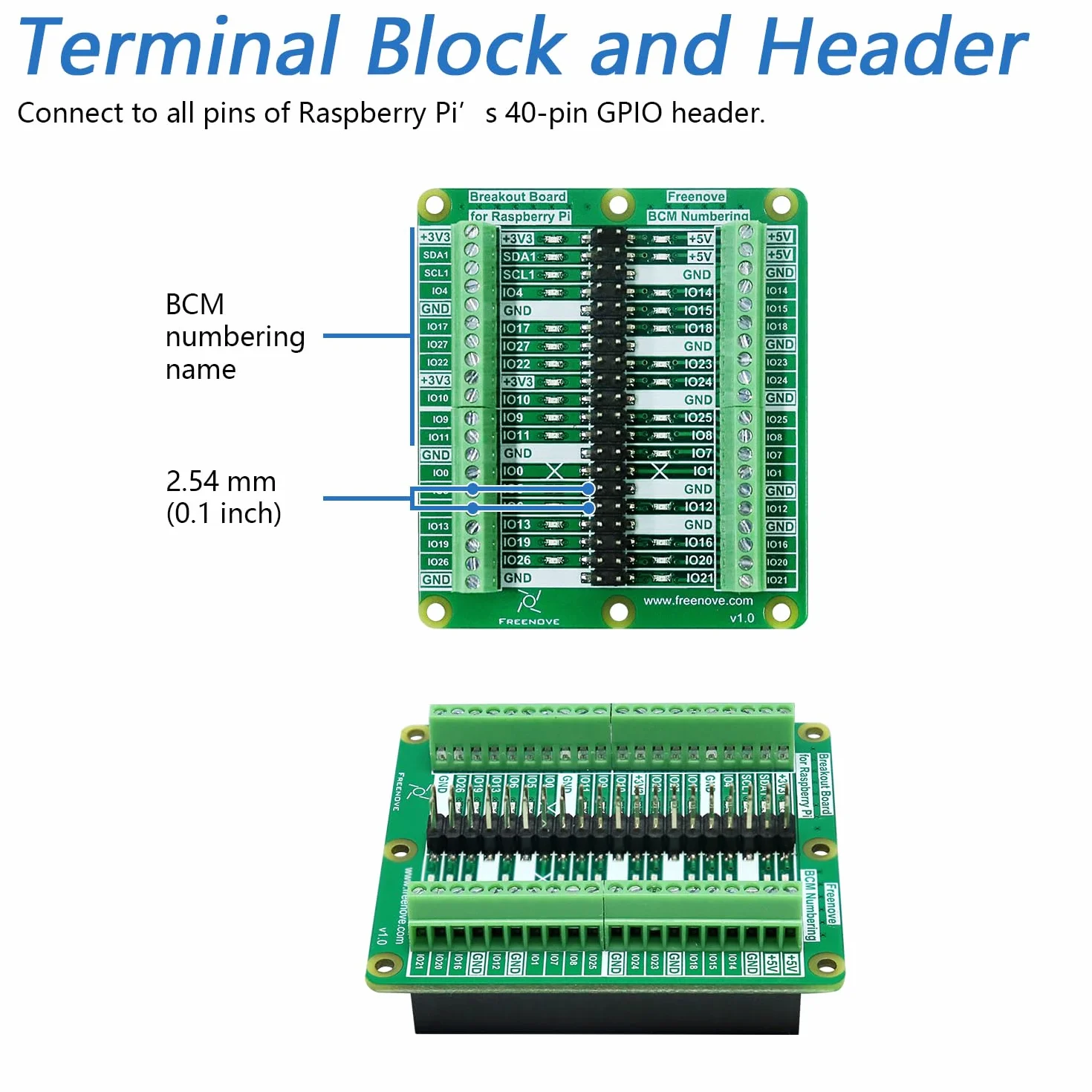

- Terminal Block and Header: Connect to all pins of Raspberry Pi's 40-pin GPIO header, 2.54 mm (0.1 inch) pitch
- Pin Name: The BCM numbering name of each pin is printed next to it
