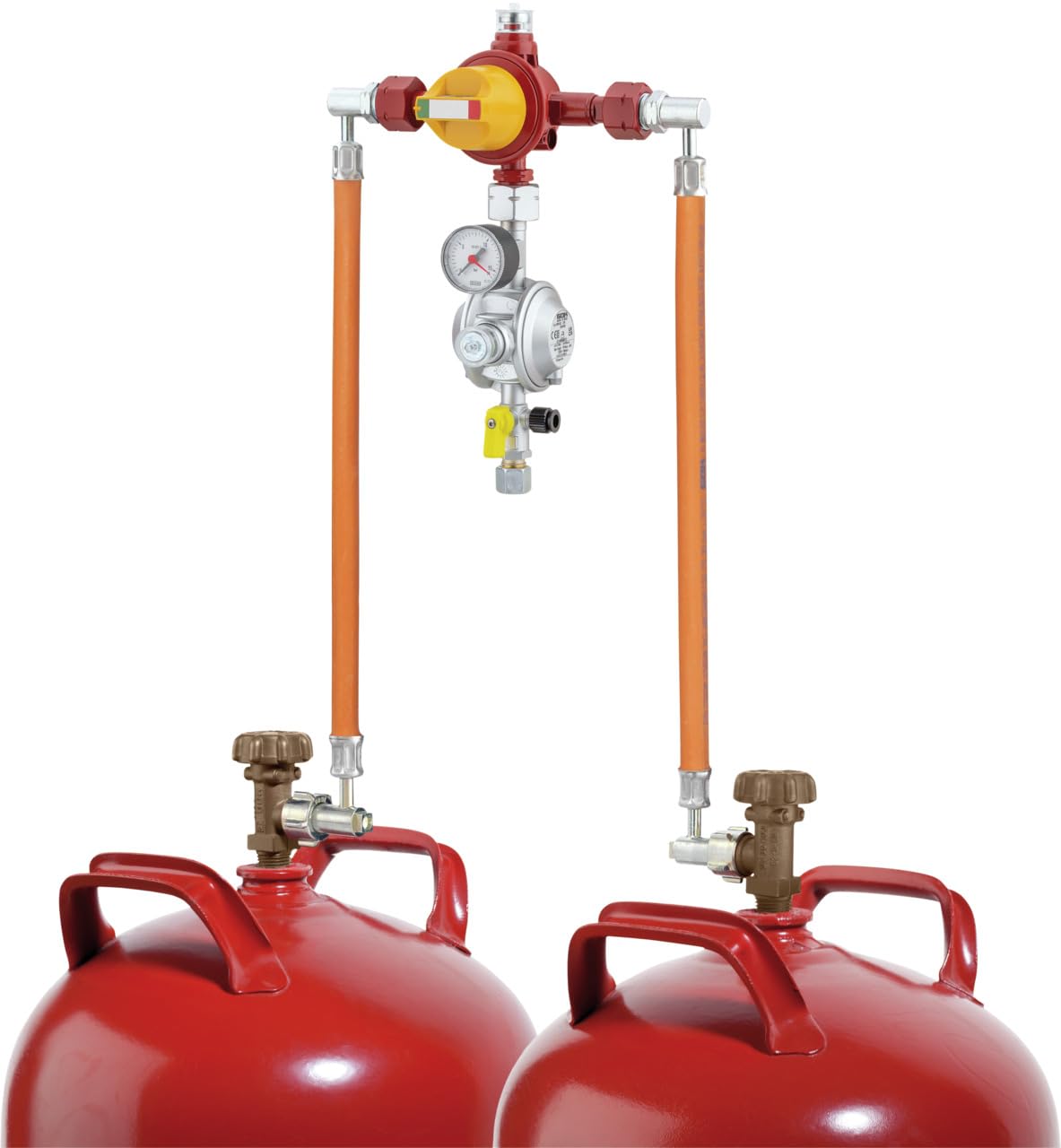

AUV - Sistema de válvula de conmutación automática para bombonas de gas, doble botella con regulador de baja presión, probador de fugas y protección contra sobrepresión, color rojo, hasta 16

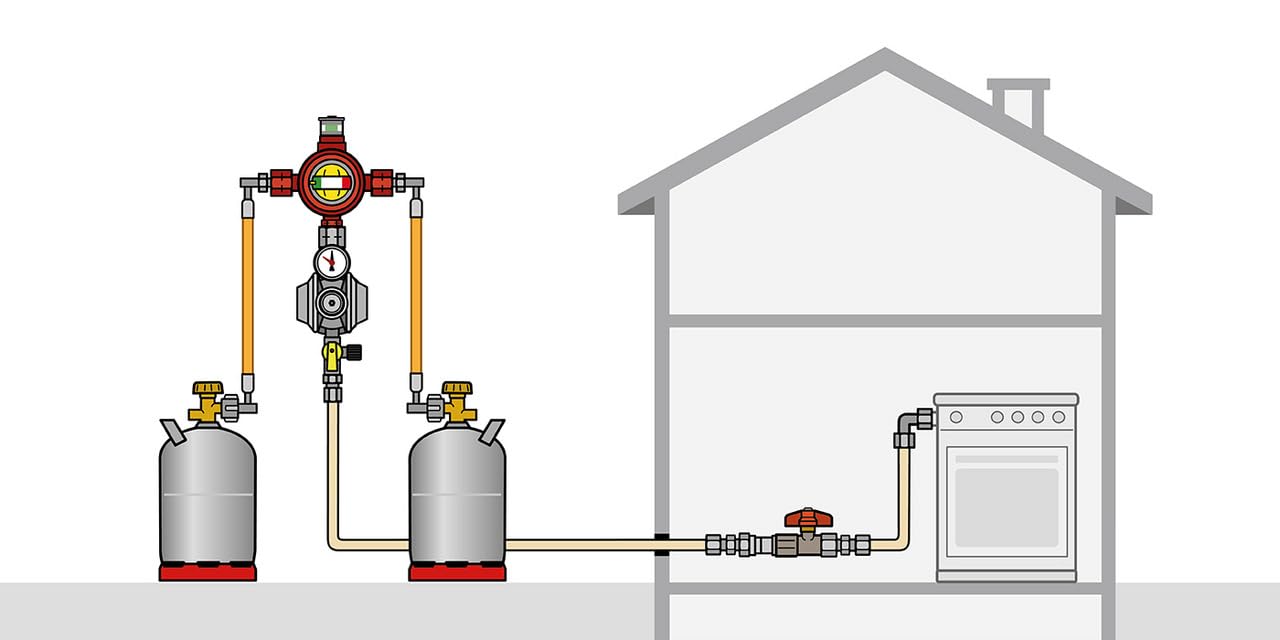

- SWITCHED SYSTEM OPERATION: A key advantage of the system is the automatic switching valve (AUV). Once a gas cylinder is empty, the system automatically switches the gas supply to the second reserve bottle. Therefore, the empty bottle can be replaced at any time without interrupting the operation of the connected devices.
- COMPLETE VISUAL CONTROL: The device is equipped with clearly visible operating and reserve indicators, as well as a control button. This allows the user to immediately identify which bottle is currently in operation and which one serves as a reserve, making it easier to plan the replacement.
- SECURITY WHEN EXCHANGING: The built-in check valve effectively prevents gas from flowing back or out of the system when an empty bottle is disconnected. This ensures a clean and safe bottle change.
- INTEGRATED INTEGRATED: The system has an integrated tester. This allows for a quick and convenient sealing test of the liquefied gas system, for example after a bottle change, without the pressure regulator having to be disassembled.
- Technical data: Número de conjunto del GOK 0506800, maximum permissible pressure: PS 16 bar. Compatibility: gas bottles with a filling weight of up to 16 kg; connection power: up to 1.5 kg/h (no flow sensor required); Output connector: RVS 10/8 (with adapter for 8 mm pipe). Certifications: DIN DVGW / DVGW / EU DGR / GGV. Box contents: 2 x high pressure hoses, 1 x AUV (with pressure gauges), 1 x EN61-DS regulator (with S2SR/ÜDS), 1 x check valve, 1 x test device, 1 x wall bracket.
